TIMLOC  CAVITY WALL WEEP

Cavity wall weeps

Multi-function products for discharging water from external walls

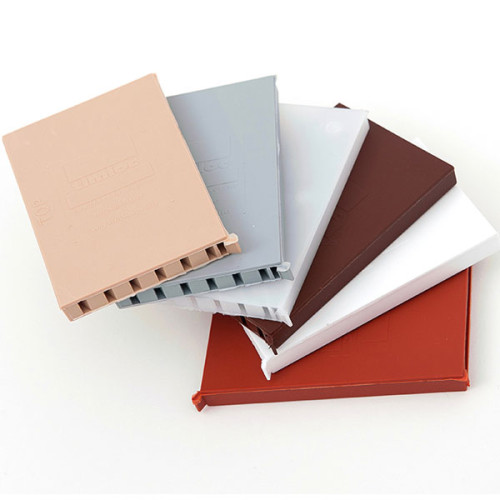

TIMLOC WEEP Terracotta

TIMLOC WEEP buff

TIMLOC WEEP brown

TIMLOC WEEP clear

TIMLOC WEEP white

TIMLOC WEEP grey

TIMLOC WEEP black


Use
Any situation where water must be discharged from an external wall, e.g:
• At ground floor slab level
• Within cavity tray systems
• Over external lintels
• Where a cavity must be ventilated
• On external walls - 100mm or more in thickness - built from brick, block or stone


Features and benefits
• Purpose made and pre-formed to guarantee reliable discharge of water
• Less prone to inadvertent pointing-up than weep holes formed by simply leaving the perp. joint open
• Integral front grille prevents entry of large nest building insects into the cavity when using product 1143
• 4mm wide front aperture prevents entry of large nest building insects into the cavity when using product TW1
• Range of colours to blend with brick or mortar colour - (products 1143 and TW1 only)
- Terracotta, buff, brown, clear, white, grey or black
• Longer lengths built up with extension pieces


Products in the system
Wall weep vents - Product 1143
A cavity wall weep/vent specifically intended for use with standard brick, block or stone external walls of thickness between 100-102.5mm.

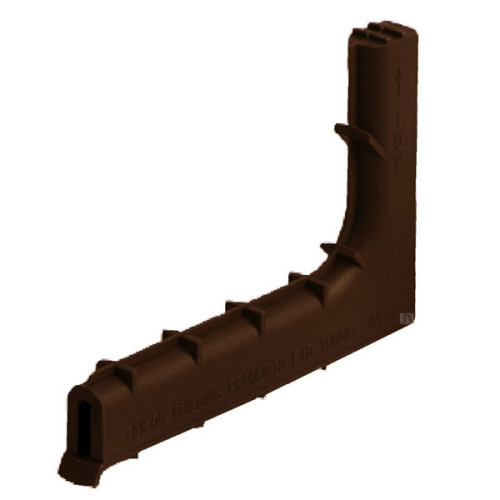

Concealed wall weeps - Product TW1
A special low profile cavity wall weep specifically intended for use with standard brick, block or stone external walls of thickness between 100-102.5mm.


Weep extension - Product 1144
A simple 50mm ‘straight through’ wall weep extension. Provides the maximum clear opening in the mortar joint with no restrictions. It is available in natural colour only.

TIMLOC CAVITY WALL WEEP

  • Brand: TIMLOC
  • Product Code: AIR WEEP GREY
  • £0.00
  • Ex Tax: £0.00
