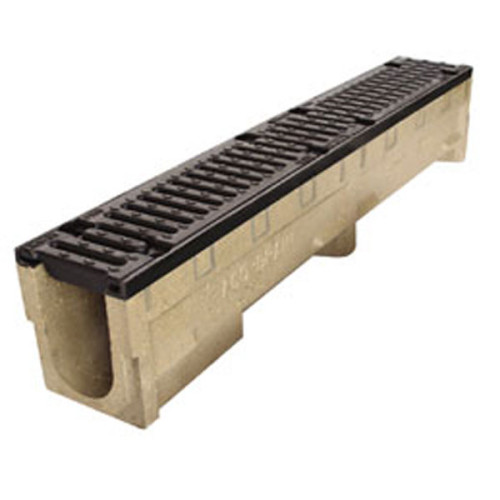

ACO S100 010 CHANNEL ONLY X 1MTR
S Range
Introduction to the system
ACO S Range is a channel drainage system designed to provide efficient removal of surface water in heavy duty applications.
Manufactured from Vienite, ACO high strength recycled polymer concrete, ACO S Range is tough channel drainage system with excellent chemical resistance. Integral cast iron edge rails provide maximum protection for the channel body.
The S Range system is available in four widths, 100mm, 150mm, 200mm and 300mm has constant and sloping depths channels for optimum performance and system design.
The ACO S100 system has a choice of slotted, Heelguard™, intercept and solid cover ductile iron gratings to ensure a wide variety of applications are catered for. The ACO S150, S200 and S300 systems are supplied with slotted ductile iron gratings. All ACO S Range gratings come complete with bolts to ensure gratings can be locked and accessed when required.
The system is fully certified to BS EN 1433: 2002 up to and including Load Class F 900 applications - suitable for extremely high wheel loads including ports, docks and aircraft pavements.
