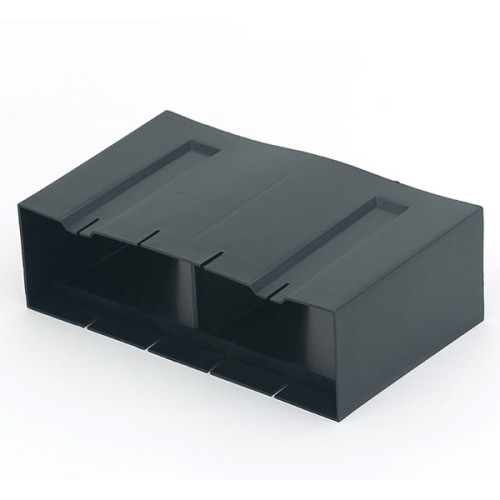

TIMLOC UNDERFLOOR VENT HORIZONTAL EXT 1206
Telescopic (adjustable) underfloor ventilator to provide ventilation beneath suspended ground floors (equivalent area of 6000mm²).
Always to be used in conjunction with the Timloc Airbrick (1201AB).
The vertical height of the ventilator unit adjusts to suit between 3 and 5 brick courses (225-375mm) with a minimum cavity width of 50mm.
Extensive range of quick and easy to fit horizontal and vertical extension accessories (doesn't restrict air flow through the ventilator):
Horizontal Rear Extension Sleeve Product (1206) – fits into the lower rear opening of the telescopic underfloor ventilator to accommodate cavity widths between 50-150mm – or internal walls of more than 100mm thickness (200mm max.).
